Torch Tips

This catalog has no sub-catalogs.


Air-Propane Screw-in Tips

Air-Propane Screw-in Tips

Pencil and brush tips

  • Quiet, adjustable brush flame
  • Fits Goss AP-1 handle
Tip No.  Flame Diameter Soft Solder BTU's @ 40psi
BP-1 Pencil 5/8"  To 1/2" 6,000
BP-2 Pencil 1" To 1-1/2" 11,000
BP-3 Brush 7/8" To 2" 14,000
BP-4 Brush 1-1/8" To 3" 43,000
BP-5 Brush 1-3/8" To 4" 57,000
BP-6 Brush 2" To 6" 300,000





Target propane/ Propylene Tips

  • Hotter Turbine Flame
  • Screw-in design
  • Fits Goss AP-1 handle
Tip No.  Flame Diamter Soft Solder Silver Braze
BP-13PM 7/16" To 1" 1/2"
BP-15PM 1/2" To 1-1/2" 3/4"
BP-15PML* 1/2" To 1-1/2" 3/4"
BP-17PM 3/4" To 2-1/2" 1-1/2"
*Instant igniter

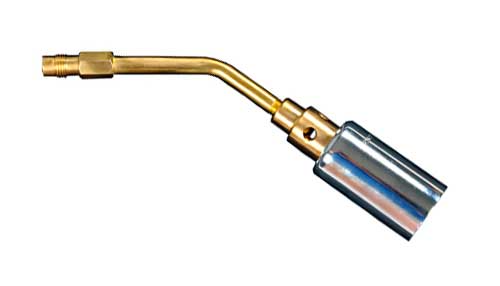

Tip ends for extensions
Engineered to provide a variety of heat and flame characteristics
when combined with handles and extensions.
  • For use with brass extensions
  • For use with both AP-54 or AP-99R
Tip No.  Flame*  Diameter BTU's @ 40psi
BP-2TE  Pencil  1" 11,000
 BP-3TE Brush 7/8" 14,000
 BP-4TE Brush 1-1/8" 43,000
BP-5TE  Brush 1-3/8" 57,000
BP-6TE  Brush 2" 300,000
BP-66  Brush 2" 300,000
*For propane or Map/Pro gas.





Brass extensions for torches
  • Screws onto AP-54 or AP-99R handle
  • For use with BP TE tips listed above
Extension  Description
EX-4B 4" Bent
EX-12B 12" Bent
EX-12S 12" Straight
EX-18B 18" Bent
EX-18S 18" Straight
EX-18DB 18" Double Head Bent
EX-18DS 18" Double Head Straight
EX-24B 24" Bent
EX-30B 30" Bent
