Target Torch Kits "Snap-in Style"
Target™ Torch Turbine Flame kits and tips
Kits feature the adjustable Target Tips for professional soldering and brazing applications.
Kits include a quick disconnect handle, 12 ft. hose and UL listed regulator.
- Hotter Turbine Flame
- Adjustable flame feature
- Tips have a filter and removable orifice
- Interchangeable with other quick disconnect style tips and equipment
- Made of heavy gauge stainless steel and brass
| Kit No. |
Tip No. |
Reg. fitting |

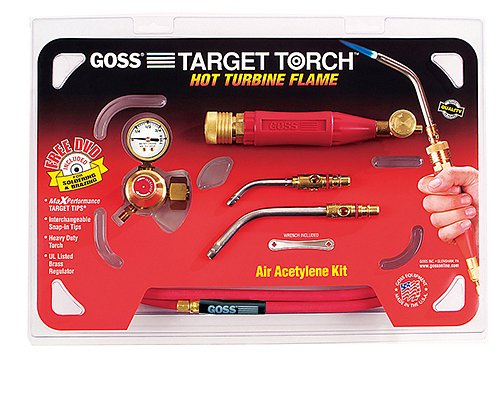

| KX-3B (shown) |
GA-3, GA-11 |
"B" Cylinder |
| KX-4B |
GA-5, GA-14 |
"B" Cylinder |
| KX-5B |
GA-5 |
"B" Cylinder |
| KX-5MC |
GA-5 |
"MC" Cylinder |
| KX-6B |
GA-3, GA-8 |
"B" Cylinder |
| KX-6MC |
GA-3, GA-8 |
"MC" Cylinder |
| KX-7B |
GA-8 |
"B" Cylinder |
Contents: HA3-12 hose, GG-4 handle, tip(s), MA-2 wrench and regulator.
| Tip No. |
Tip Size |
Soft Solder |
Silver Braze |
| GA-2 |
1/4" |
1/8"-1/2" |
1/8"-1/4" |
| GA-3 |
5/16" |
1/4"-1" |
1/8"-1/2" |
| GA-5 |
3/8" |
3/4"-1½" |
1/4"-3/4" |
| GA-8 |
3/8" |
1"-2" |
1/2"-1" |
| GA-11 |
7/16" |
1½"-3" |
7/8"-1½" |
| GA-14 |
1/2" |
2"-4" |
1"-2" |
| GA-32 |
3/4" |
4"-6" |
1½"-4" |
Kits feature EZE-Lite push button ignition tips with a turbine swirl flame.
Kits include a quick disconnect handle, 12 ft. hose and UL listed regulator.
- Hotter Turbine Flame
- Tip ignites with the push of a button
- Tips have a filter and removable orifice
- Interchangeable with other quick disconnect style tips and equipment
| Kit No. |
Tip No. |
Reg. fitting |

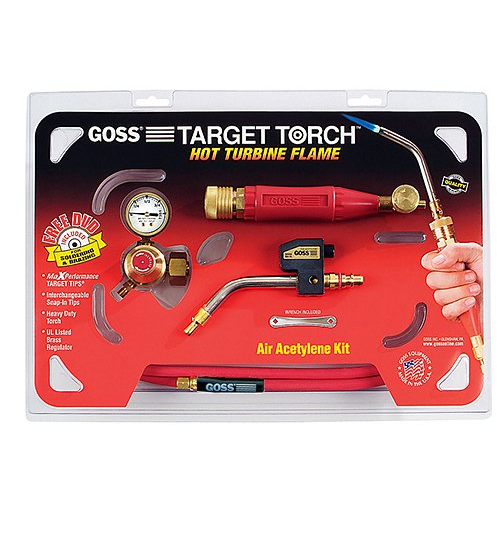

| KX-10B (shown) |
GA-5L |
"B" Cylinder |
| KX-10MC |
GA-5L |
"MC" Cylinder |
| KX-15B |
GA-8L |
"B" Cylinder |
| KX-15MC |
GA-8L |
"MC" Cylinder |
| KX-20B |
GA-14L |
"B" Cylinder |
Contents: HA3-12 hose, GG-4 handle, tip, MA-2 wrench and regulator
| Tip No. |
Tip Size |
Soft Solder |
Silver Braze |
| GA-3L |
1/4" |
Up to1/2" |
Up to1/2" |
| GA-5L |
5/16" |
Up to 1½" |
Up to 3/4" |
| GA-8L |
3/8" |
Up to 2" |
Up to 1" |
| GA-14L |
1/2" |
Up to 4" |
Up to 2" |
|
