AIR-ACETYLENE EQUIPMENT
Torch Tips
Target/Turbine Flame Tips "Snap-in Style"
GA Series
- Hotter Turbine Flame
- Adjustable flame feature
- Tips have a filter and removable orifice
- Interchangeable with other quick disconnect style tips and equipment
- Made of heavy gauge stainless steel and brass
- Snap-In tips designed for Goss GG-4 handle
| Tip No. | Tip Size | Soft Solder | Silver Braze |
| GA-2 | 1/4" | 1/8"-1/2" | 1/8"-1/4" |
| GA-3 | 5/16" | 1/4"-1" | 1/8"-1/2" |
| GA-5 | 3/8" | 3/4"-1½" | 1/4"-3/4" |
| GA-8 | 3/8" | 1"-2" | 1/2"-1" |
| GA-11 | 7/16" | 1½"-3" | 7/8"-1½" |
| GA-14 | 1/2" | 2"-4" | 1"-2" |
| GA-32 | 3/4" | 4"-6" | 1½"-4" |

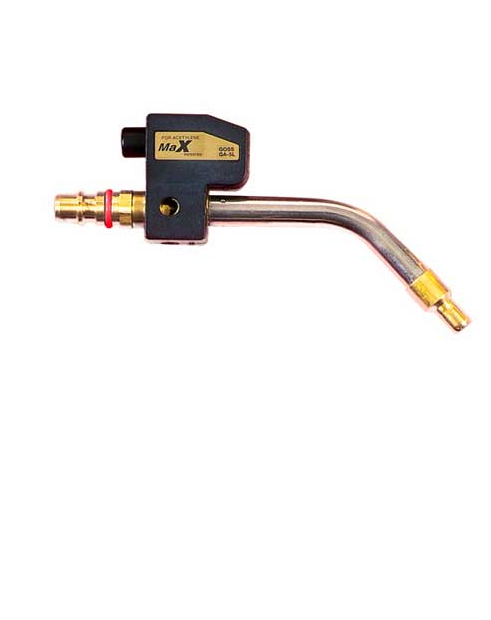

- Hotter Turbine Flame
- Tip ignites with the push of a button
- Tips have a filter and removable orifice
- Interchangeable with other quick disconnect style tips and equipment
- Snap-In tips designed for Goss GG-4 handle
| Tip No. | Tip Size | Soft Solder | Silver Braze |
| GA-3L | 1/4" | Up to1/2" | Up to1/2" |
| GA-5L | 5/16" | Up to 1½" | Up to 3/4" |
| GA-8L | 3/8" | Up to 2" | Up to 1" |
| GA-14L | 1/2" | Up to 4" | Up to 2" |
- J-Tip design allows soldering or brazing in hard to reach areas
while safely pointing the flame away from flammable surfaces
- Snap-In tips designed for Goss GG-4 handle
- GA-GT & GA-TT duel feather flame designed for special applications
| Tip
Number
|
Flame
Diameter
|
Soft
Solder
|
Silver
Brazing
|

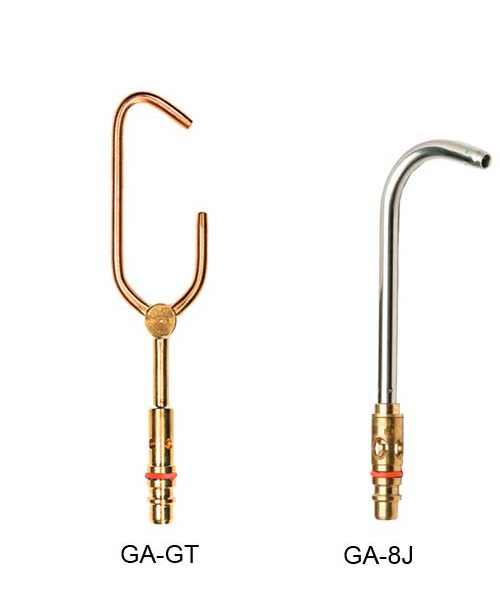

| GA-GT | (2) 1/4" | 3/4" | 3/4" |
| GA-3J | 1/4" | 1/4" to 1" | 1/8" to 1/2" |
| GA-8J | 3/8" | 1" to 2" | 1/2" to 1" |
American Manufacturer
Since 1940
1511 Route 8, Glenshaw, PA 15116
